ChingMu 광학식 모션캡처 시스템
ChingMu 광학식 모션캡처 시스템
칭무의 광학식 모션 캡처링 시스템은 독립적으로 광학식 카메라를 포함한 하드웨어 및 캡처링 소프트웨어를 개발하여 중국과 아시아를 중심으로
게임, 필름, 애니메이션 및 산업 과학시장을 개척 중에 있는 스튜디오형 솔루션으로서 전문 모캡 스튜디오 및 아카데미 시장에서 높은 가용성을 제공합니다.

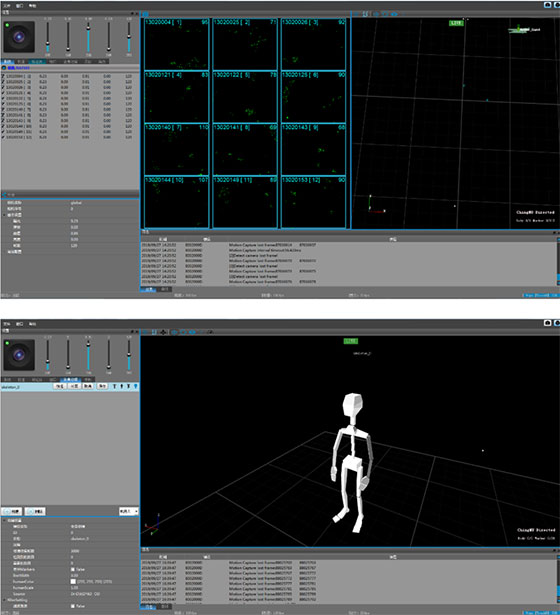

리얼타임 모션캡처 소프트웨어
리얼타임 소프트웨어 시스템은 Chingmu 비전에서 독자적으로 개발했으며 친화적인 소프트웨어 조 작 인터페이스, 간단하고 조작하기 쉽고 강력한 소프트웨어 성능으로 모션 캡처 및 추적 및 위치 지정을 사용하여 모든 종류의 시나리오를 충족할 수 있습니다

모델 자산 가져오기의 리디렉션을 지원하고 IK/FK를 지원.

2D/3D 시각 디스플레이를 지원하고 동시에 100개 이상의 단단한 물체를 캡처할 수 있도록 지원

리그 바디에 동적 추가를 지원하고 마커 포인트를 선택하지 않고 새로운 리그바다를 자동으로 추가

동일한 지점 위치로 여러 리그바디 대상을 동시에 식별할 수 있는 활성 마커 추적을 지원

인간 골격(23개의 세그먼트)의 단일 키 생성을 지원하고 결합된 사람, 로봇 등의 이미지로 표시

전신 동적 캡처 데이터는 Unity3D, UE4, MotionBuilder 및 기타 소프트웨어에서 실시간으로 3D 캐릭터 모델을 구동.

지능형 데이터 복구 기능으로 시스템은 배우가 포옹, 팔 굽혀 펴기 또는 롤을 할 때 신체 움직임을 꾸준히 캡처할 수 있음.

모든 관성 장치와 광학 관성 혼합을 지원하며 광학 관성 혼합 기능이 있는 리그바디는 하나의 마커 포인트만 캡처 하더라도 6도의 자유도를 안정적으로 추적.

전신 동적 캡처 데이터는 FBX, BVH, C3D, CMR 및 기타 형식으로 저장.내보내기한 데이터는 MotionBuilder 및 Maya에서 단일 키 바인딩 함.

모바일 캡처 시스템은 클라이언트 측과 별도로 배포할 수 있으며 클라이언트 쪽은 모든 터미널에 설치하고 서버는 원격으로 제어함.

광학식 카메라
리얼타임 소프트웨어 시스템은 Chingmu 비전에서 독자적으로 개발했으며 친화적인 소프트웨어 조작 인터페이스, 간단하고 조작하기 쉽고 강력한 소프트웨어 성능으로 모션 캡처 및 추적 및 위치 지정을 사용하여 모든 종류의 시나리오를 충족할 수 있습니다.
mc360
보급형 모션 캡처 렌즈이며 서브밀리미터 캡처의 정확도를 지원함. 경제성과 효율성을 고려한 아카데미형 모델이 대면 시뮬레이션 고객, Powerwall 및 Cave 링크에 적용, 유연하고 안정적인 카메라임.
Built-in near-infrared LED flash with 850nm wavelength and adjustable intensity
Frame speed: 60fps
Resolution: 752*448
Field of view Angle: 60°× 100°
no error synchronization, synchronization accuracy ns level
Installation distance: 9 meters
Delay: 16.6 ms
Tracking distance: 9 meters
mc1300
MC1300 추적 시스템은 2017년에 그린 퓨필 비전으로 출시된 추적 카메라임. 3세대 공간 측위 카메라는 주로 영화 및 방송 유형의 고객을 대상으로 응용하는 제품임. 같은 성능의 경쟁사의 카메라와 비교 MC1300은 녹색 pupil 비전의 중요 경쟁 모델임
the maximum frame rate: 210fps
resolution: 1280 * 1024
Field of view: 90° × 70°
support network PTP precise synchronization, synchronization accuracy ns level
POE power supply, only need one network cable to complete system power supply, synchronization and data transmission functions at the same time
installation distance: 100 meters
delay: 4.8 milliseconds
tracking distance: 15 meters or more
mc4000(T)
2019년형 MC4000 추적 카메라는 가장 긴 캡처 거리, 최고의 공간 커버리지 기능, 완전한 호환성을 가지며 다양한 조합으로 보다 포괄적인 솔루션을 제공하는 카메라임.
the maximum frame rate: 180
resolution: 2048 * 2048
Field of view: 53° × 53°
support network PTP precise synchronization, synchronization accuracy ns level
POE power supply, only need one network cable to complete system power supply, synchronization and data transmission functions at the same time
installation distance: 100 meters
delay: 5.5 milliseconds
tracking distance: 30 meters
mc4000(C)
MC4000모션캡처 카메라로서 고성능 캡처 기능을 제공하는 새로운 카메라임.
the maximum frame rate: 360
resolution: 2048 * 1088
Field of view: 54° × 78°
support network PTP precise synchronization, synchronization accuracy ns level
POE power supply, only need one network cable to complete system power supply, synchronization and data transmission functions at the same time
installation distance: 100 meters
delay: 2.8 milliseconds
tracking distance: 30 meters
mc1000
MC1000은 녹색 pupil 비전의 기능을 제공하는 4세대 포지셔닝 카메라임. 가성비와 외관 면에서 더욱 최적화 되었으며 단순한 검은색 사각형 모양으로 현재 블루pupil 눈동자 비전 시장에 이상 적인 포지셔닝을 제공하는 카메라임.
Infrared optical tracking, no electrical, magnetic and acoustic interference
wireless tracking, no data line and power line tie
built-in high-energy near-infrared LED flash, the wavelength is 850 nm, the intensity can be adjusted
full resolution maximum frame rate: ≥ 120 frames / sec
resolution: ≥ 1.3 million pixels
horizontal field of view: ≥ 85 °
vertical field of view: ≥ 65 °
focal length ≤ 4mm, aperture ≤ 1.8
There is a digital tube in front of the lens to indicate the working status of the camera and the calibration progress
built-in processor performance ≥ dual-core ARM A9, memory ≥ 1GB DDR3 SDRAM, ≥ 16MB QSPI, ≥ 4GB eMMC
POE power supply, only one network cable can complete the system power supply, synchronization and data transmission functions at the same time
installation distance: 100 meters
delay: ≤ 8.5 milliseconds
Tracking distance: ≥11 meters
